- Size: 2
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: QSJ-5040A
- Weight: 250.000 kg

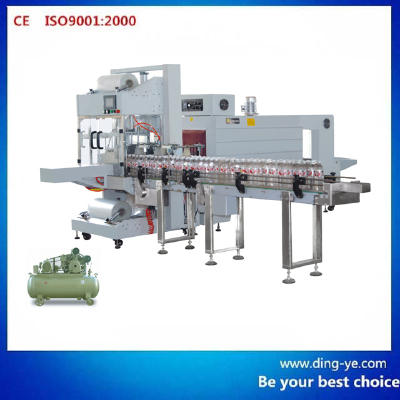

Characteristic:
1. The Machine adopts the advanced touch screen which makes operation easier, Schneider programmable logic controller (PLC), Schneider AC contactor, AirTAC cylinder, and all the rest parts adopt international famous brand.
2. Upper and down electromagnetic switch prevents sealing mistakes, and protect operator.
3. Automatic alarm security system protects machine and operator.
4. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
- Size: 2
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: QSJ-5040A
- Weight: 250.000 kg
| Model | QSJ -5040A | Model | BSE -5040A |
| Power source | 3phase 220V/380V 50-60HZ | Power source | 3phase 220V/380V 50-60HZ |
| Power | 3KW | Heater power | 20KW |
| Capacity | 600-800 pcs/hour | Conveyer speed | 0 -10m /minute |
| Working air pressure | 0.4 -0.6 MPa | Tunnel size(L*W*H) | 1500*500* 400mm |
| Width/thickness of the film | Max. 590mm /0.03 - 0.25mm | Conveyer loading | 50KGS Max. |
| Max. packing dimension(L*W*H) | 420*300*350mm | Machine size(L*W*H) | 2500*820* 1680mm |
| Min. packing dimension(L*W*H) | 250*50* 100mm | Machine weight | 470KGS |
| Conveyor size (L*W*H) | 2600*410*400mm | Shrink film | PE, POF, PVC, PP |
| Machine size(L*W*H) | 1060*1600*1930mm | ||
| Machine weight | 370kg |
