- Size: 2
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: BZJ-5038
- Weight: 250.000 kg

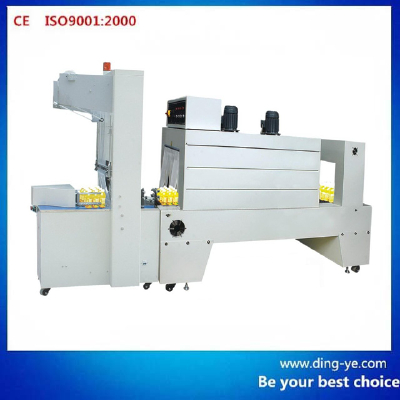

BZJ5038B semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5040A jet PE-film shrink tunnel or other PE shrink tunnel BSE-5038. Enlarge packing range or custom-made machine according to customers requirement.
Characteristic:
1. Upper and down electromagnetic switch prevent sealing mistakes, and protect operator. 2. Every simply and easy to adjust machine to match different packing size.
3. Simple operation and maintenance with high packing efficiency.
4. Schneider AC contractor, and Intelligent temp
erature controller performs stable.
5. Automatic alarm security system protects machine and operator.
6. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
7. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of sh
rinking in one time.
8. Super cooling system cools the packing an
d makes the figuration perfectly.
- Size: 2
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: BZJ-5038
- Weight: 250.000 kg
| BZJ-5038B(Pneumatic) | Model | BSE -5040A | |
| Power supply | 220-240V, 50-60Hz;1.8KW | Power supply | 3phase 220V/380V 50-60HZ |
| Capacity | 300-400pcs/hour | Heater power | 20KW |
| Sealing time/shrink time | 0.5-1.5s, 0-0.6s | Conveyer speed | 0 -10m /minute |
| Conveyor loading | 30kg | Tunnel size(L*W*H) | 1500*500* 400mm |
| Film thickness | 0.03 -0.12mm | Conveyer loading | 50KGS Max. |
| Max. packing dimension(L*W*H) | 450 x 270 x 350mm | Machine size | 2500*820* 1680mm |
| Min. packing dimension(L*W*H) | 250 x 60 x 60mm | Machine weight | 470KGS |
| Machine size(L*W*H) | 1020 x 830 x 1980mm | Shrink film | PE,POF,PVC,PP |
