- Size: 1.5
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: ZBS-83A
- Weight: 160.000 kg

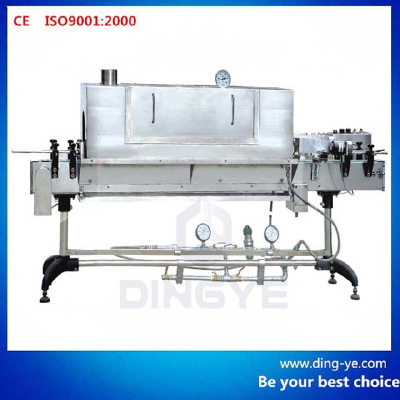

Machine adopts steam-shrink model with S/S structure. It has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. 5-section design in shrink tunnel, independent temp. Control in each section, as well as height adjust and distance adjust between objects. Any shape bottle is able to reach nice-looking shrink effect after simple adjust
- Size: 1.5
- Place of Origin: china
- Brand Name: DINGYE
- Model Number: ZBS-83A
- Weight: 160.000 kg
Model | ZBS83A | Name | Steam generator |
Capacity | 5000-15000B/H | Power | 24KW |
Tunnel size(L*W*H) | 1350*180*270mm | Electricity | 380V/3PH |
Power | 150W | Pressure | 0.4MPa |
weight | 150KG | Volume | 27L |
Steam pressure | 0.1MPa | Steam production | 32KG/h |
Steam consumption | 24KG/H | Weight | 91KG |
Shrink temperature | 75-85℃ | ||
Dimension(L*W*H) | 2620*500*1200mm | ||
